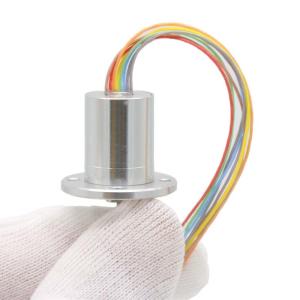

SP013018 series high-speed slip ring
The standard models in this series include
SP013018-009/SP013018-012/SP013018-018. This miniature high-speed
long-life slip ring has a speed of 10000 revolutions per minute and
a lifespan of 10 million revolutions per minute, with stable
performance!
As one of our key technologies, the high-speed slip ring has been
successfully applied to a certain unit model in large quantities.
After sufficient user verification, our company's high-speed slip
ring has stable performance and long service life.
Application areas: Used for high-speed testing platform strain gauge signals,
thermocouple signals, etc., such as aircraft engine testing,
high-speed rail component testing, automotive wheel hub performance
testing!
Technical advantages:
ü Slipring's core technology - friction pair technology: gold metal contact
technology, ensuring an ultra long service life.
ü Integrated casting process: Ensure the concentricity between the
ring groove and the bearing is ≤ 0.01mm.
ü Mirror processing technology: Ensure that the smoothness of the
slip ring contact surface can reach Ra0.02, making the contact more
reliable.
ü Precision component manufacturing process: dimensional
tolerance<0.01mm, high precision, and more stable performance.
ü Advanced brush wire modulation technology: Nearly zero pressure
brush design and debugging process, extending the life of the slip
ring by 1/3.
ü Small in size and compact in structure, it can meet the space
constraints of users.
ü The slip ring adopts a solid 304 stainless steel metal structure
with strong sealing performance, suitable for extremely harsh
environments.
ü High speed, this slip ring can reach a maximum speed of 20000
revolutions per minute.
