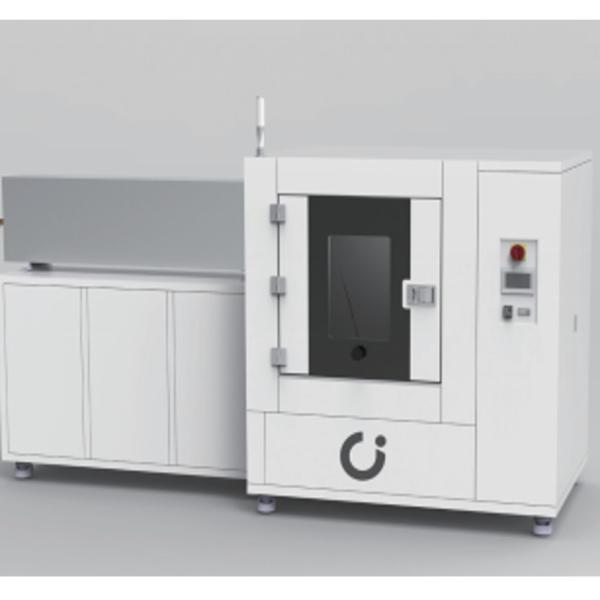

Customized IPX1/2 Rain Test Chamber Leakage Protection Waterproof Test Equipment

Shenzhen SPRing Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customized IPX1/2 Rain Test Chamber Leakage Protection Waterproof Test Equipment from wholesalers

    Buy cheap Customized IPX1/2 Rain Test Chamber Leakage Protection Waterproof Test Equipment from wholesalers
    • Buy cheap Customized IPX1/2 Rain Test Chamber Leakage Protection Waterproof Test Equipment from wholesalers

    Customized IPX1/2 Rain Test Chamber Leakage Protection Waterproof Test Equipment

    Ask Lasest Price
    Price : 15000~50000 USD
    Payment Terms : L/C,T/T
    Supply Ability : 50/month
    Delivery Time : 1~3 weeks
    Brand Name : SPR-ing
    • Product Details
    • Company Profile

    Customized IPX1/2 Rain Test Chamber Leakage Protection Waterproof Test Equipment

    IPX1/2 Rain Test Chamber IPX1/2 Drip test chamber


    Model

    JR-X3/4-200

    JR-X3/4-400

    JR-X3/4-600

    Pendulum radius (mm)

    R200mm

    R400mm

    R600mm

    Inner dimension (D × W × H: mm)

    500×500×500mm

    900×900×900mm

    1300×1300×1300mm

    External dimension (D × W × H: mm)

    1000×680×1440

    1400×1120×1750

    1800×1520×1950

    Flow (L/min)

    0-1L/min

    0-2L/min

    0-3L/min

    Number of blowholes (PCs)

    12

    25

    37

    Orifice diameter (mm)

    φ0.4mm

    Hole spacing (mm)

    One nozzle at 50mm interval

    Swing angle (°)

    120 ° (IPX3), 350 ° (IPX4), or custom settings

    Sample table rotation mode

    Straight forward rotation/forward and reverse rotation/interval rotation

    Power requirements

    220V

    Safety precautions

    Leakage protection, water shortage protection and short circuit protection
